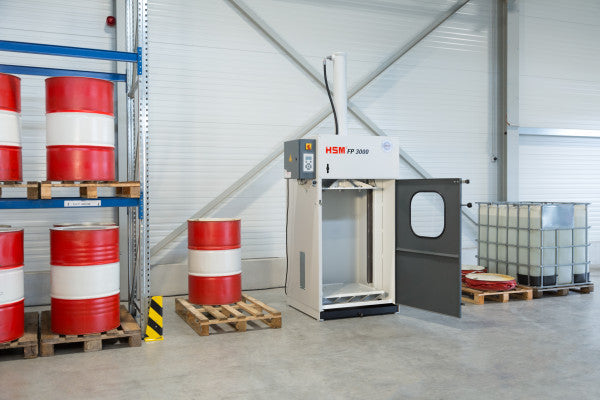

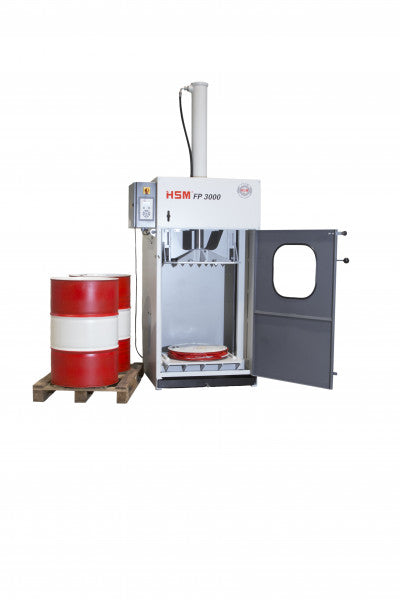

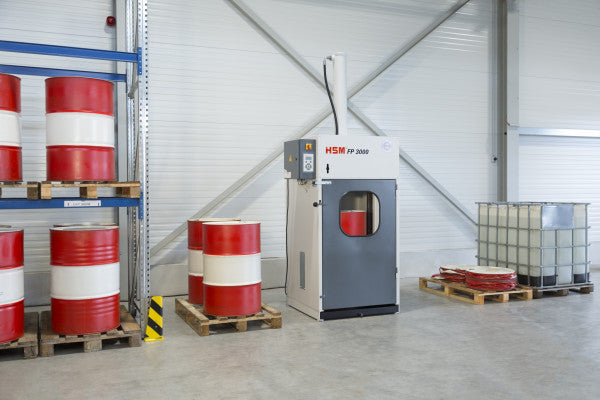

HSM FP 3000 is an industrial barrel crusher for pressing light metal and rolled hoop barrels. This drum crusher has a pressing power of 27 tons and reduces the volume of barrel drums by up to 90%. The industrial crusher is built with a press ram with spikes for opening the barrels and a collector tray for residual liquid.
The barrel crusher is enclosed on all sides with an inspection window for safety and dust reduction. HSM FP3000 is a continuous duty machine with automatic return stroke to save time, overhead and personnel costs.
Order Number: 6820100
Pressing Power: 27 ton
Driving Power: 10.06 HP
Cycle Time: 33 seconds
Loading Height: 43.0 inch
Voltage / Frequency: 480 V / 60 Hz
Dimensions (W x Dx H): 45.98 x 37.8 x 113.86 inch
Data Sheet: PDF File
